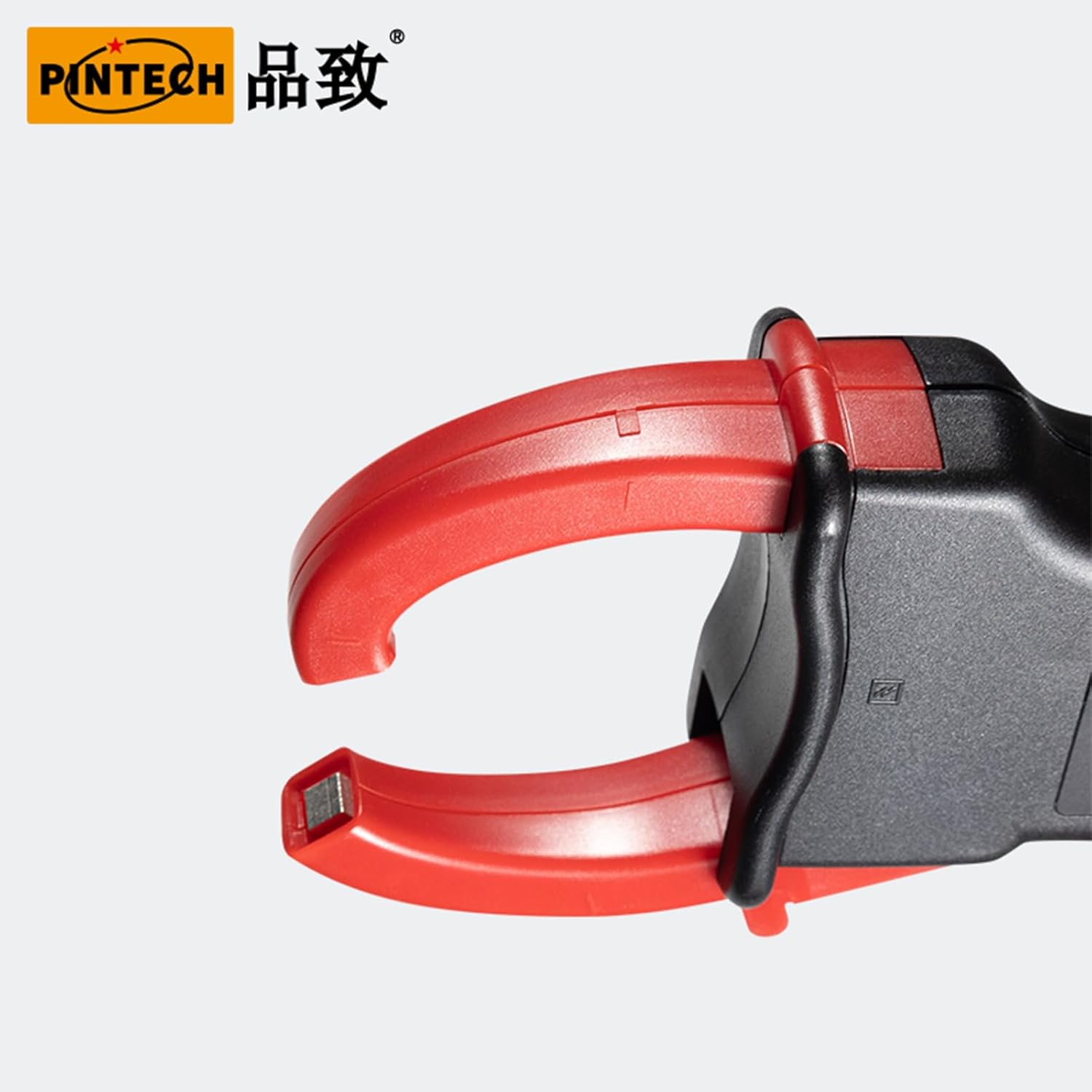

PINTECH AC/DC Current Probe Oscilloscope Probe 400A, 150kHz, 1mV/10mA, Current Clamp Meter with BNC Connector, PT740-1A

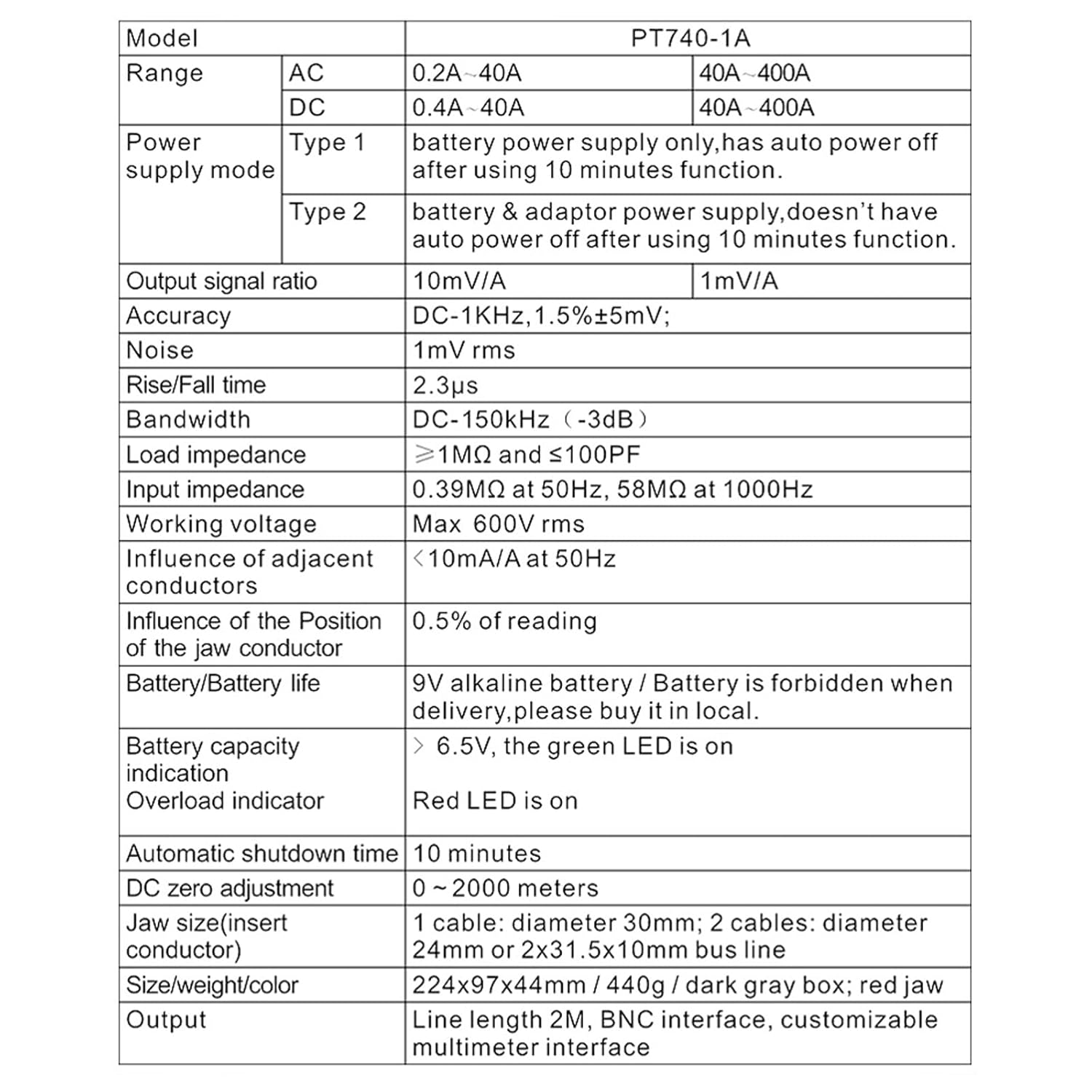

MODEL: PT740-1A Bandwidth (-3dB): DC-150kHz Current Range: Peak:0.2A~40A, 40A~400A DC:0.4A~40A, 40A~400A Out Signal Ratio: 10mV/A(100:1), 1mV/A(1000:1) Out Signal Inaccuracy(typical):±1.5%+5mV Noise:1mV rms Rise/Fall Time:2.3μs The load impedence:≥1MΩ and ≤100pF Insert Impedance: 0.39mΩ at 50Hz, 58mΩ at 1000Hz Working Voltage: Max 600V rms Common-mode voltage: Max 600V rmsv Influence of Adjacent Conductors: <10mA/A at 50Hz Influence of Jaw Conductor Position: 0.5% of reading Battery Capacity Indicator: When >6.5V，the green LED illuminates Overload Indicator: Red LED is on Automatic Shutdown Time: 10 minutes DC Zero Adjustment: Supprot Jaw Size(insert conductor): 1 cable: 30mm diameter; 2 cables: 24mm diameter or 2×31.5×10mm busbar Output: Cable length 2M/78.7in, BNC connector Weight: 440g/0.97lb Size: 224 x 97 x 44 mm

• High accuracy oscilloscope current probe can measure 400A, maximum voltage 600V rms. Bandwidths up to 150KHz. The AC/DC Current Clamp are two current ranges available.
• Peak Range: 0.2A to 40A, 40A to 400A.
• DC Current Range: 0.4A to 40A, 40A to 400A.
• Widely Used: The current probe features BNC interface, compatible with all oscilloscopes. The PT740-1A current clamp is also suitable for power measurements, measure RMS values in the presence of DC interference.
• Package Included: PT740-1A AC/DC Current Clamp x 1, Adapter x 1, Manual x 1. 【NOTE】Default delivery to adapter-powered current probe, If you want battery-powered current probe, please contact us! BUT BATTERY NOT INCLUDED.
